Reliable Chinese Carbon Steel Coil Manufacturer
Carbon steel coils are strong rolled metal sheets that are highly versatile across engineering industries. We are the leading supplier of carbon steel coils in China with over 15 years of metallurgical expertise, supplying prime Hot-Rolled (HRC), Cold-Rolled (CRC), and Galvanized (GI) coils to over 100 countries globally.
Types of Carbon Steel Coils Supplied By Yanshan Steel
There are various types of carbon steel coils available, varying from one another in terms of production temperature, mechanical properties, and surface protection.

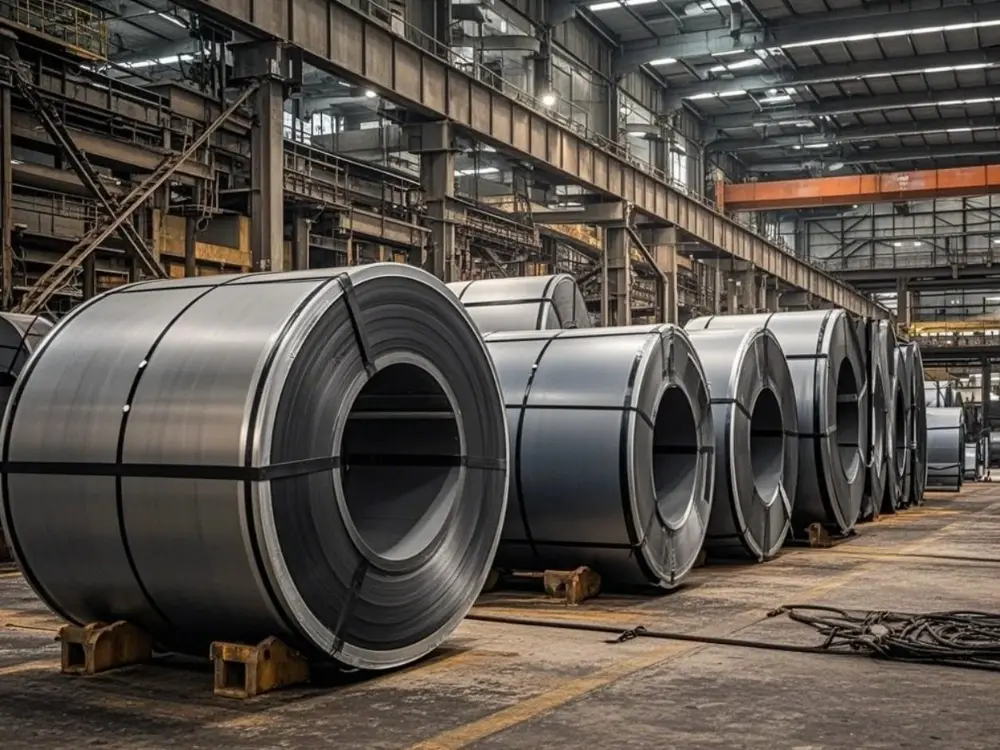

High-Temperature RollingHot-Rolled Carbon Steel Coils (HRC)
Manufactured by heating steel at high temperatures exceeding 1700°F (above recrystallization). Hot-rolled coils feature high ductility, excellent formability, and superior cost-effectiveness for heavy-duty structural applications.
Primary Applications:- •Oil and gas pipelines & casing
- •Construction beams & bridge columns
- •Automotive frames and truck chassis
- •Railcars & container frames
- •Agricultural machinery brackets
- •Heavy metal building structures

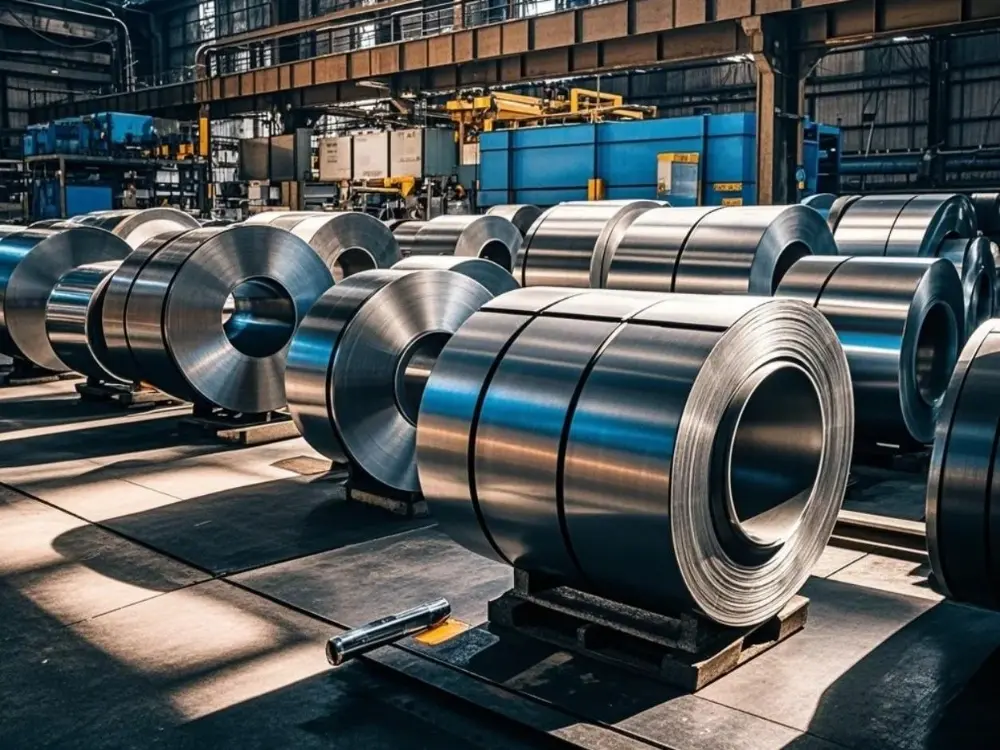

Precision Gauge & FinishCold-Rolled Carbon Steel Coils (CRC)
Processed below recrystallization temperature through tandem cold-reduction rolling lines followed by continuous annealing and skin-passing. Offers tighter thickness tolerances, superior surface smoothness, and enhanced tensile strength.
Primary Applications:- •Metal furniture work & shelving
- •Automotive outer body panels
- •Household appliances & white goods
- •Precision welded tubes & conduits
- •Toolboxes & precision enclosures
- •Progressive die metal stamping

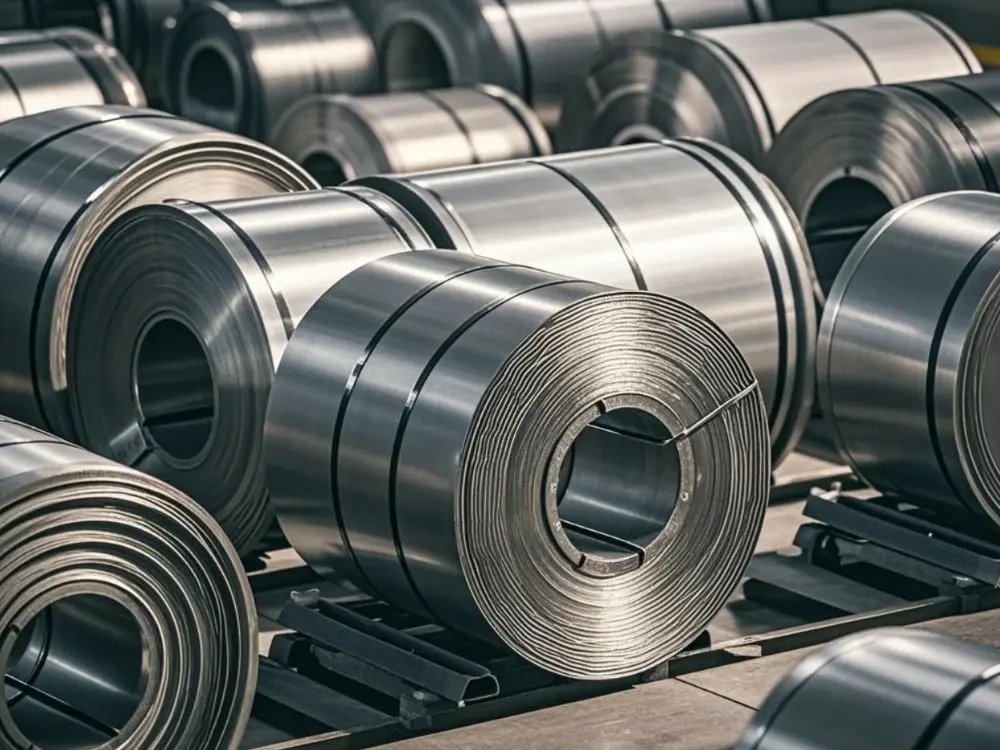

Sacrificial Zinc ShieldGalvanized Carbon Steel Coils (GI)
Hot-rolled or cold-rolled base coils submerged in molten zinc bath creating an impenetrable metallurgical zinc-iron alloy barrier that provides sacrificial cathodic corrosion protection against moisture and atmospheric exposure.
Primary Applications:- •Fencing, guardrails & highway barriers
- •Roofing and corrugated siding panels
- •Bridges and structural supports
- •Marine & shipbuilding components
- •HVAC ventilation ducting & conduits
- •Agricultural silos & barns
Why Do Carbon Steel Coils Stand Out?
Carbon steel coils are widely utilized across manufacturing and infrastructure due to five foundational metallurgy pillars:
Coils with higher carbon content provide exceptional load-bearing and yield strengths, making them ideal for structural beams, crane booms, and bridge reinforcement.
Coils with pickled & oiled or hot-dip galvanized coatings prevent oxygen and moisture from reaching the steel matrix, preventing corrosion and extending service life.
Available in continuous gauges from 0.15mm up to 60mm and slit widths from 10mm to 2500mm, adapting effortlessly to automotive stamping and heavy construction.
Low-carbon steel coils exhibit superior elongation (≥ 26%) allowing intricate deep drawing, stamping, roll-forming, and welding without cracking.
Carbon steel offers the most competitive cost-to-strength ratio of any structural metal, minimizing project budget expenditure in mass-production industries.
Our mill delivery time ranges from 8 to 30 days worldwide, backed by over 200,000 MT of standing inventory across primary international ports.
Grades of Carbon Steel Coils: Low vs. Medium vs. High Carbon
Choosing the right grade requires evaluating carbon concentration against machinability, weldability, and target load demands.
| Evaluation Parameter | Low Carbon Steel | Medium Carbon Steel | High Carbon Steel |
|---|---|---|---|
| Carbon Content Range | 0.03% – 0.25% Carbon Content | 0.25% – 0.60% Carbon Content | 0.60% – 1.50% Carbon Content |
| Common Mill Grades | ASTM A36, Q235, S235JR, ST37, SPCC, DC01 | AISI 1040, 1045, S275JR, Q345B, S355JR | AISI 1060, 1075, 1080, 1084, 1090, T10 |
| Machinability & Formability | Very easy to machine, bend, and deep draw | Moderate machinability; heat treatment helps | Difficult to machine; requires carbide tools |
| Weldability Characteristic | Excellent weldability without preheating | Moderate weldability; preheating recommended | Poor weldability; special welding procedure required |
| Typical Industry Uses | Automotive stampings, pipes, consumer goods | Machinery shafts, gears, structural beams | High-stress springs, cutting tools, blades |
Specification of Our Carbon Steel Coils
Full dimensional scope, governing manufacturing standards, and precision tolerance capabilities.
| Specification Category | Detailed Parameters & Mill Limits |
|---|---|
| Governing Standards | JIS G3101, JIS G3141, EN 10025, EN 10130, ASTM A36, ASTM A1011, ASTM A1008, GB/T 700 |
| Thickness Range | 0.15 mm – 60.0 mm (CRC: 0.15mm – 3.0mm | HRC: 1.2mm – 60.0mm) |
| Width Range | 600 mm – 2500 mm (Custom precision slit strips down to 10mm width) |
| Processing Types | Hot-Rolled (HRC), Cold-Rolled (CRC), Pickled & Oiled (P&O), Galvanized (GI) |
| Standard Grades | Q195, Q235B, Q345B, SS400, A36, S235JR, S355JR, SPCC, SPCD, DC01, DC04 |
| Surface Treatment | Lightly Oiled, Heavy Oiled, Dry, Passivated, Skin-passed (Matte / Bright / Dull) |
| Coil Inner Diameter (ID) | 508 mm (20 inch) / 610 mm (24 inch) |
| Coil Outer Diameter (OD) | 1000 mm – 2000 mm max |
| Coil Unit Weight | 3 to 25 Metric Tons per coil (Baby coils from 1 MT available upon request) |
| Slitting Tolerance | Width: ± 0.05 mm | Camber: ≤ 1.5 mm / 2000 mm | Burr: ≤ 3% of sheet thickness |
| Export Packaging | Waterproof barrier paper + steel strapping + eye-to-sky wooden pallets (ISO compliant) |
| Delivery Lead Time | 8 – 30 Days (In-stock sizes dispatched within 15 days) |
Applications of Carbon Steel Coils Across Industries
Almost every major engineering and fabrication sector relies on our hot-rolled, cold-rolled, and galvanized coils.
| Industry Sector | Common Uses & Finished Components |
|---|---|
| Automotive Industry | Chassis structural members, body panels, cross-members, bumper reinforcements, exhaust brackets |
| Construction & Infrastructure | Roofing sheets, floor decking, structural H-beams, bridge girders, reinforcement bars, purlins |
| Manufacturing & Fabrication | Heavy machinery frames, storage tanks, pressure vessels, industrial toolboxes, electrical enclosures |
| Energy & Power Sector | Wind turbine tower shells, high-pressure oil/gas line pipes, transformer tanks, solar mounting brackets |
| Pipe & Tube Manufacturing | High-frequency ERW welded steel tubes, casing pipes, square and rectangular hollow structural sections (HSS) |
| Transportation & Shipbuilding | Intermodal shipping containers, rail freight car chassis, ship bulkheads, barge decks, cargo hulls |
| Agricultural Equipment | Tractor frames, harvester blades, combine chassis, grain storage silos, livestock stall gating |
| Hardware & Metal Stamping | Hinges, brackets, appliance chassis, electrical junction boxes, precision washers, deep-drawn casings |
Why Choose Yanshan Steel as Your Carbon Steel Coil Supplier?
We have been in the industrial steel market for over two decades, collaborating with engineering firms, steel service centers, and distributors worldwide. Yanshan Steel guarantees transparent pricing, verified Mill Test Certificates (MTC), and prompt delivery on every order.
Complete stock of common grades (A36, Q235, Q345, SPCC, SS400) ready for immediate shipment without delays.
Direct manufacturer wholesale pricing with lucrative tiered volume discounts for full container and vessel shipments.
Live order tracking, technical datasheets, MTC verification, and multilingual sales support around the clock.
Frequently Asked Questions About Carbon Steel Coils
What is a carbon steel coil?
A carbon steel coil is a continuous rolled strip of steel wound into a coil after being processed through hot-rolling or cold-rolling mills. It serves as an essential raw material for downstream fabricators, who uncoil, slit, stamp, roll-form, or weld it into final industrial products.
What are the primary benefits of using carbon steel coils?
Carbon steel coils offer exceptional tensile strength, remarkable durability, outstanding formability, and unmatched cost-effectiveness compared to other metal alloys. They are available in diverse gauges and can be customized with pickling, oiling, or galvanizing to prevent rust.
Can carbon steel coils be customized to specific project requirements?
Yes. Yanshan Steel provides fully customized coils including specific thickness gauges (0.15mm to 60mm), custom slit widths down to 10mm, customized coil weights (baby coils from 1 ton up to 25 tons), and tailored surface finishes (matte, dull, bright, oiled, or galvanized).
How does the price of carbon steel coils behave?
Carbon steel coil pricing fluctuates based on global raw material costs (iron ore, coking coal, scrap), supply and demand dynamics, and freight rates. As a primary mill supplier, Yanshan Steel offers competitive mill-direct pricing and tiered volume discounts for bulk B2B procurement.
Request Industrial Mill RFQ
Specify technical grades, dimensions, tolerances, and tonnage. Guaranteed engineering quote within 4 business hours.
